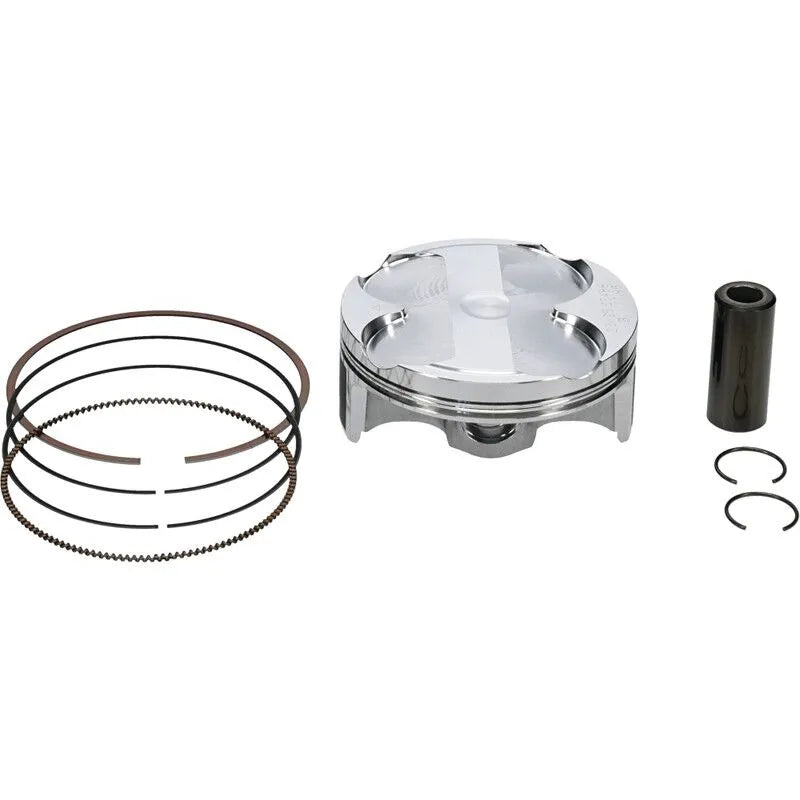

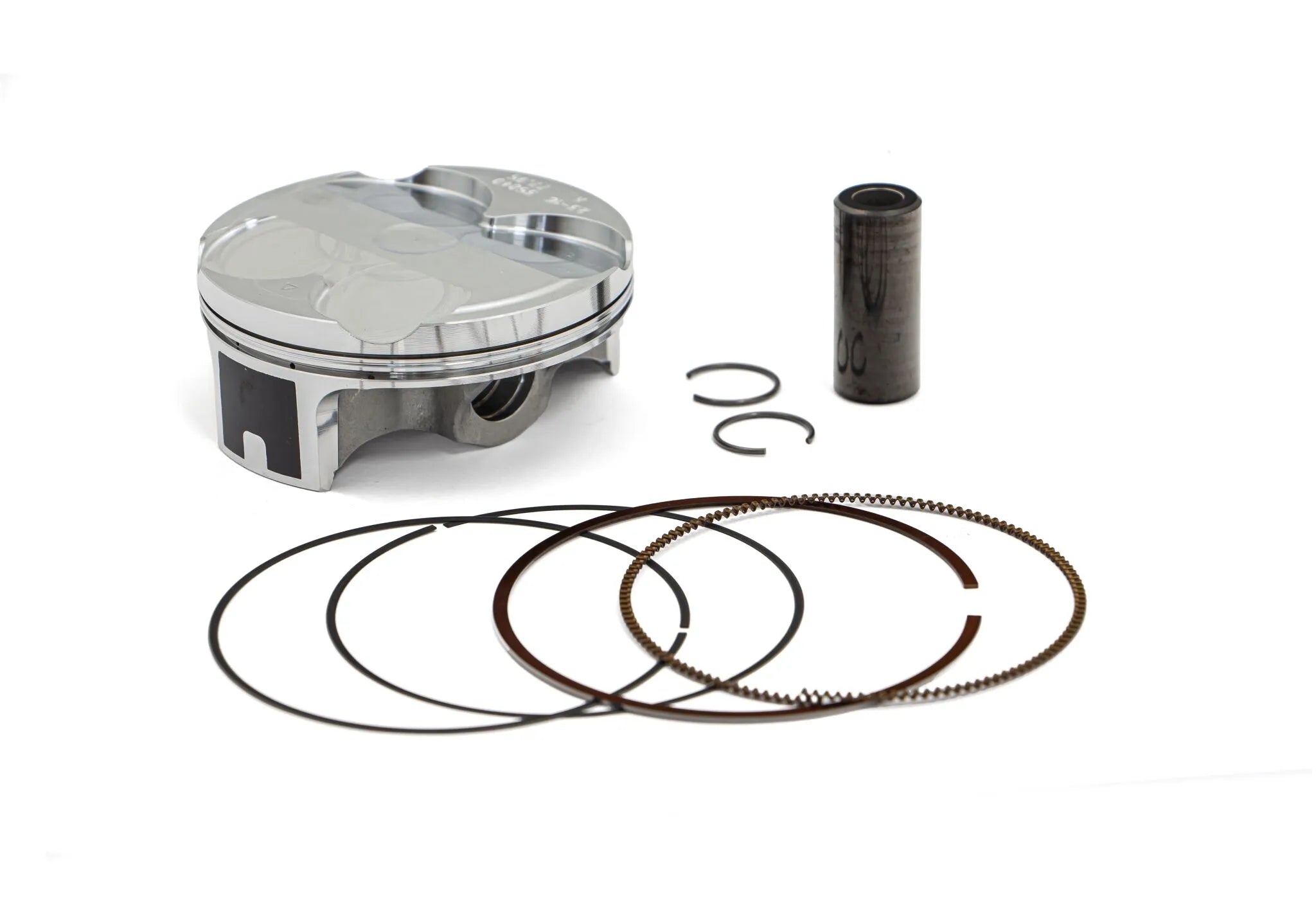

Vertex Pro Replica Forged Piston Kit

Elevate your engine's performance and durability with the Vertex Pro Replica Forged Piston Kit. Specifically engineered for 250cc 4-stroke engines, this kit provides a premium OE replacement solution, combining precision manufacturing with enhanced material strength for reliable and long-lasting operation.

Description

The Vertex Pro Replica Forged Piston Kit is meticulously engineered to deliver exceptional performance and durability for your 250cc 4-stroke engine. This OE replacement piston kit is crafted to match original equipment specifications while providing significant strength enhancements. Forged from high-grade 2618 aluminum alloy, these pistons undergo a rigorous T-5 hardening and tempering heat treatment cycle, ensuring superior structural integrity and resilience under extreme operating conditions. With a precise 78.00 mm bore size and a high 14.1:1 compression ratio, this piston is designed to optimize engine power output and responsiveness.

Each piston skirt features a high-tech Molybdenum Disulphite coating, significantly reducing friction during the critical break-in period and extending the overall lifespan of the piston. This advanced coating also contributes to smoother operation and enhanced reliability throughout the engine's service life. Designed as a direct OEM replacement, the Vertex 250cc Forged Piston Kit ensures a straightforward installation process, providing a perfect fit and reliable operation. All included rings are also OEM replacements, guaranteeing compatibility and consistent performance.

Features & Highlights

• Superior Strength & Durability: Forged from robust 2618 aluminum alloy and T-5 heat-treated for maximum resilience under high-stress conditions.
• Optimized Engine Performance: Engineered for 250cc 4-stroke engines, featuring a precise 78.00 mm bore and a high 14.1:1 compression ratio for enhanced power.
• Extended Piston Life: High-tech Molybdenum Disulphite skirt coating reduces friction and wear, significantly prolonging the piston's service life.
• Faster Break-In: The advanced moly coating facilitates a quicker and smoother engine break-in process, getting you back on the road or track sooner.
• Complete OE Replacement Kit: Includes the forged piston, OEM replacement rings, wrist pin, and circlips for a comprehensive engine overhaul.
• Precise Fitment: Designed as an exact OEM replacement, ensuring seamless installation and reliable, consistent engine function.

Technical Specifications

• Style: Forged Replica
• Units: Kit
• Bore Size: 78.00 mm
• Engine Type: 4-Stroke
• Piston Size: Standard Size B
• Displacement: 250 cc
• Product Name: Piston Kit
• Ring Material: Nitride Coated, Steel
• Skirt Coating: Moly Coated
• Piston Diameter: 77.96 mm
• Piston Material: Aluminum Alloy, Forged
• Compression Ratio: 14.1:1
• Vendor Part Number: 24628B

Important to Know

• Replacement two-stroke piston rings are sold individually.
• Replacement four-stroke piston rings are sold as a set.
