Vertex Top End Piston Kit - 54mm Bore - 125cc - Size C - VTK23928C-3
Product info
- Item number
- 09104388
- Manufacturer number
- VTK23928C-3
- Position
The Vertex Top End Piston Kit offers a reliable and cost-effective solution for your 125cc 2-stroke engine. This kit provides all the necessary components for a complete piston replacement, ensuring optimal performance and longevity. Get your Vertex piston kit today!
Description
This Vertex Top End Piston Kit features a cast replica piston crafted to original equipment (OE) specifications. Manufactured from gravity-cast aluminum alloy with 18% silicone content, the piston achieves an exceptional balance of lightweight design and robust strength. Each piston undergoes a T-5 heat treatment, hardening and tempering cycle to enhance its durability and resistance to wear. The piston skirt benefits from a high-tech Molybdenum Disulphide coating, which reduces friction during break-in and extends piston life. This top end piston kit is designed as a direct OEM replacement, ensuring seamless compatibility and reliable performance. The 53.96mm piston diameter ensures proper fitment and compression within the 54.00mm bore of your 125cc engine.
Features & highlights
- Cast replica piston designed to meet or exceed OE specifications.
- T-5 heat treatment provides exceptional strength and durability.
- Molybdenum Disulphide coated piston skirt reduces friction and wear.
- Gravity-cast aluminum alloy with 18% silicone for a lightweight, strong piston.

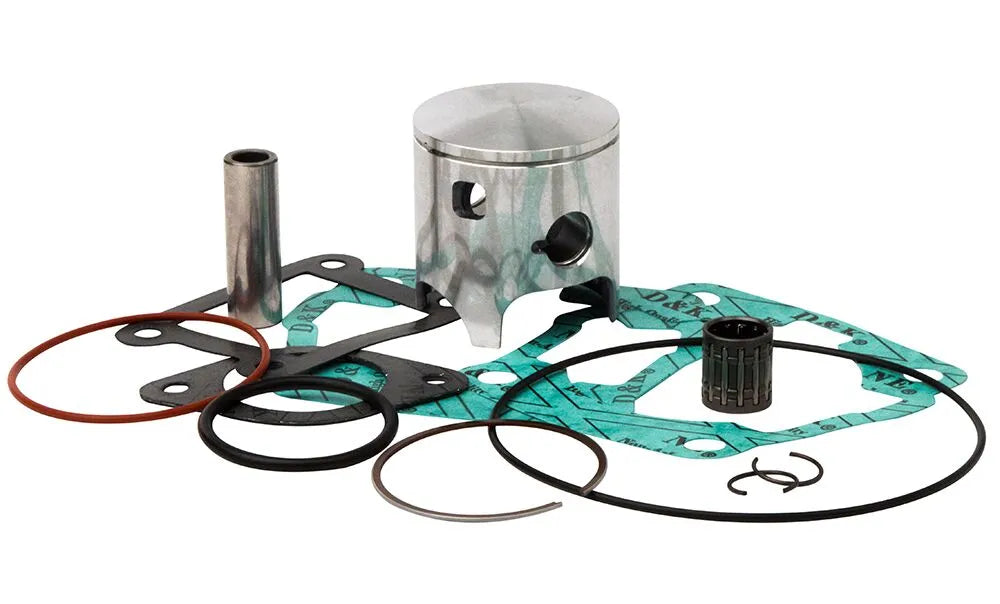

- Complete kit includes piston, rings, wrist pin, circlips, and top end gaskets.
- Nitride coated steel rings for enhanced sealing and wear resistance.
- Suitable for 125cc 2-stroke engines.
Technical specifications
- Brand: Vertex
- Part Number: 09104388
- Engine Type: 2-Stroke
- Displacement: 125 cc
- Piston Material: Cast Aluminum Alloy
- Piston Diameter: 53.96 mm
- Bore Size: 54.00 mm
- Piston Size: Standard Size C
- Ring Material: Nitride Coated Steel
- Type: Top End
- Units: Kit
Important to know
- Ensure proper fitment for your specific motorcycle model.
- Professional installation is recommended.
- Brand
- VERTEX
- Vendor part number
- VTK23928C-3
- Product name
- Piston Kit
- Bore size
- 54,00 mm
- Displacement
- 125 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size C
- Piston diameter
- 53,96 mm
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
