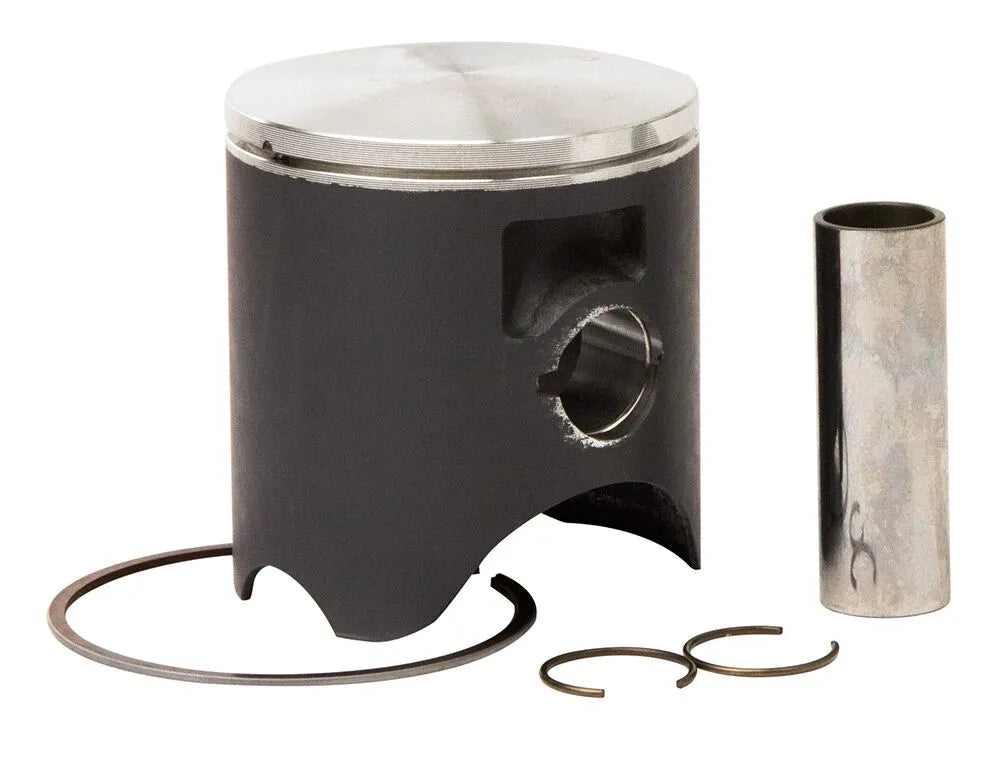

Vertex Top End Piston Kit - 54mm Bore - 125cc - Size A - VTK22600A
Product info
- Item number
- 09104265
- Manufacturer number
- VTK22600A
- Position
Upgrade your motorcycle's performance with the Vertex Top End Piston Kit. This cast replica piston kit provides excellent performance and durability. Designed as an OEM replacement, it ensures a precise fit and reliable operation.
Description
The Vertex Top End Piston Kit is engineered to deliver exceptional performance and longevity for your 125cc 2-stroke engine. This kit features a cast piston crafted to original OE form, providing a reliable and cost-effective solution for your engine rebuild. The piston undergoes a T-5 heat-treating cycle, enhancing its strength and durability. The piston skirt is coated with Molybdenum Disulphite, promoting faster break-in and extending piston life. Constructed from gravity-cast aluminum alloy with an 18% silicone content, this piston achieves an optimal balance of lightweight design and robust strength. This top end piston kit ensures your engine operates at peak efficiency, offering enhanced power and reliability on the road or track. The kit includes all necessary components for a complete top-end overhaul, simplifying the installation process.
Features & highlights
- Cast piston replicates original OE form for precise fit and reliable performance.
- T-5 heat treatment enhances piston strength and durability.
- Molybdenum Disulphide coated skirt ensures faster break-in and extended piston life.
- Gravity-cast aluminum alloy with 18% silicone provides a lightweight yet strong piston.

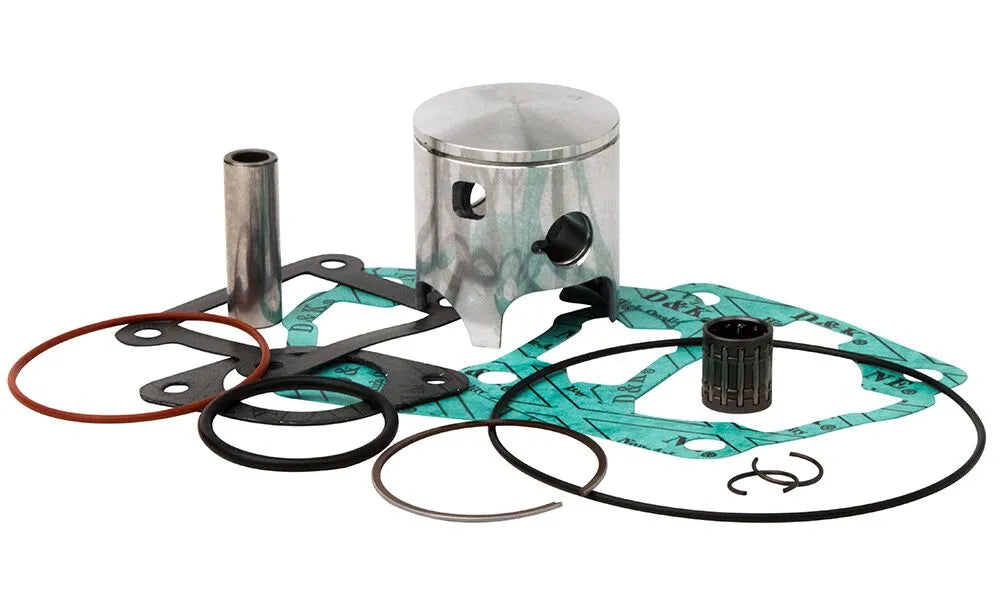

- Complete kit includes piston, rings, wrist pin, circlips, and top-end gaskets for a comprehensive rebuild.
- Designed as an OEM replacement, ensuring compatibility and ease of installation.
Technical specifications
- Brand: VERTEX
- Vendor Part Number: VTK22600A
- Bore Size: 54.00 mm
- Displacement: 125 cc
- Engine Type: 2-Stroke
- Piston Diameter: 53.93 mm
- Piston Material: Aluminum Alloy, Cast
- Piston Size: Standard Size A
- Product Name: Piston Kit
- Ring Material: Nitride Coated, Steel
- Type: Top End
- Units: Kit
Important to know
Ensure proper piston-to-cylinder clearance during installation. Always consult your engine's service manual for specific torque specifications and installation procedures.
- Brand
- VERTEX
- Vendor part number
- VTK22600A
- Product name
- Piston Kit
- Bore size
- 54,00 mm
- Displacement
- 125 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 53,93 mm
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
