Vertex Top End Piston Kit - 45mm Bore - 65cc - Size A - VTK23430AB
Product info
- Item number
- 09104360
- Manufacturer number
- VTK23430AB
- Position
Maximize the performance and longevity of your 65cc 2-stroke engine with the Vertex Top End Piston Kit. This kit delivers exceptional quality and reliability, ensuring optimal engine performance for enthusiasts and professionals alike. Get your machine back in top shape with Vertex pistons.
Description
The Vertex Top End Piston Kit features a cast piston crafted to original equipment (OE) form. Constructed from gravity-cast aluminum alloy with an 18% silicone content, these pistons offer an ideal balance of lightweight design and high strength. Each piston undergoes a T-5 heat treatment, hardening, and tempering cycle for enhanced durability. The piston skirt benefits from a Molybdenum Disulphide coating, promoting faster break-in and extended piston life. Designed as OEM replacements, these pistons and rings ensure a precise fit and reliable performance. The Vertex kit is perfectly suited for rebuilding your top end, increasing the life and reliability of your engine. Compatible with 65cc 2-stroke engines.
Features & highlights
- Cast piston replicates original OE form for precise fit and performance.
- T-5 heat treatment enhances piston hardness and durability.
- Molybdenum Disulphide coated skirt reduces friction and accelerates break-in.
- Gravity-cast aluminum alloy with 18% silicone ensures a lightweight yet strong piston.
- Complete top end kit includes all necessary components for a hassle-free installation.
- Nitride coated and steel rings provide optimal sealing and wear resistance.
Technical specifications
- Brand: Vertex
- Engine Type: 2-Stroke
- Displacement: 65cc
- Piston Material: Cast Aluminum Alloy
- Piston Size: Standard Size A, Standard Size B
- Piston Diameter: 44.96 mm
- Bore Size: 45.00 mm
- Ring Material: Nitride Coated, Steel
- Type: Top End
Important to know

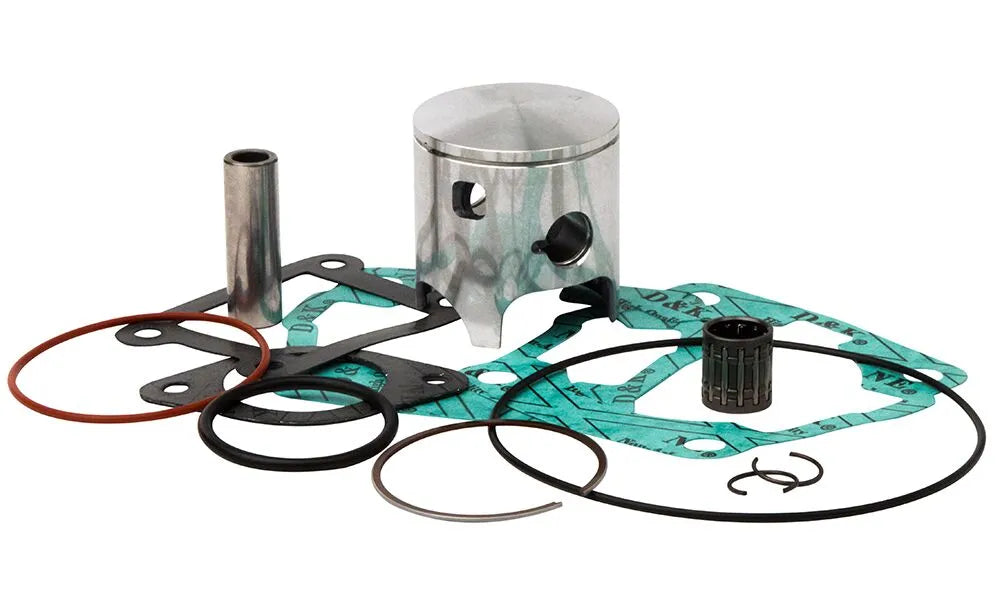

This top end piston kit includes the piston, rings, wrist pin, circlips, and top end gaskets. Please ensure compatibility with your specific engine model before installation.
- Brand
- VERTEX
- Vendor part number
- VTK23430AB
- Product name
- Piston Kit
- Bore size
- 45,00 mm
- Displacement
- 65 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A, Standard Size B
- Piston diameter
- 44,96 mm
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
