Vintco Top End Piston Kit for 80cc 2-Stroke Engines
Product info
- Item number
- 09106424
- Manufacturer number
- KTH10-00
- Position
Upgrade your 80cc 2-stroke engine with the premium Vintco 80cc 2-Stroke Piston Kit, engineered for superior performance and durability. This comprehensive top end rebuild solution provides everything you need to restore your motorcycle's power and reliability.
Description
This motorcycle top end rebuild kit from Vintco is meticulously crafted using advanced materials and manufacturing techniques to meet or exceed OEM standards. The heart of this kit is a high-strength, forged 2-stroke piston, proudly made in Germany, ensuring exceptional durability and resistance to extreme engine conditions. Each piston features a specialized MoS2 coated piston skirt, significantly reducing friction during the crucial break-in period and extending the overall lifespan of your 80cc engine piston replacement. Designed for 80cc 2-stroke engines, this Vintco kit provides an ideal solution for riders seeking reliable and powerful performance. The complete package includes the piston, rings, pin, clips, a top end bearing, and a full top-end gasket kit (head, base, intake, and exhaust gaskets) for a seamless installation. OEM part numbers are referenced to ensure correct fitment, guaranteeing peace of mind with every rebuild.
Features & Highlights
- Premium Construction: Made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance.
- Forged German Piston: High-strength, forged piston produced in Germany for superior durability and reliability in demanding 2-stroke applications.
- MoS2 Coated Skirt: Features a Molybdenum Disulfide (MoS2) coated piston skirt to ease break-in, reduce friction, and prolong piston life.

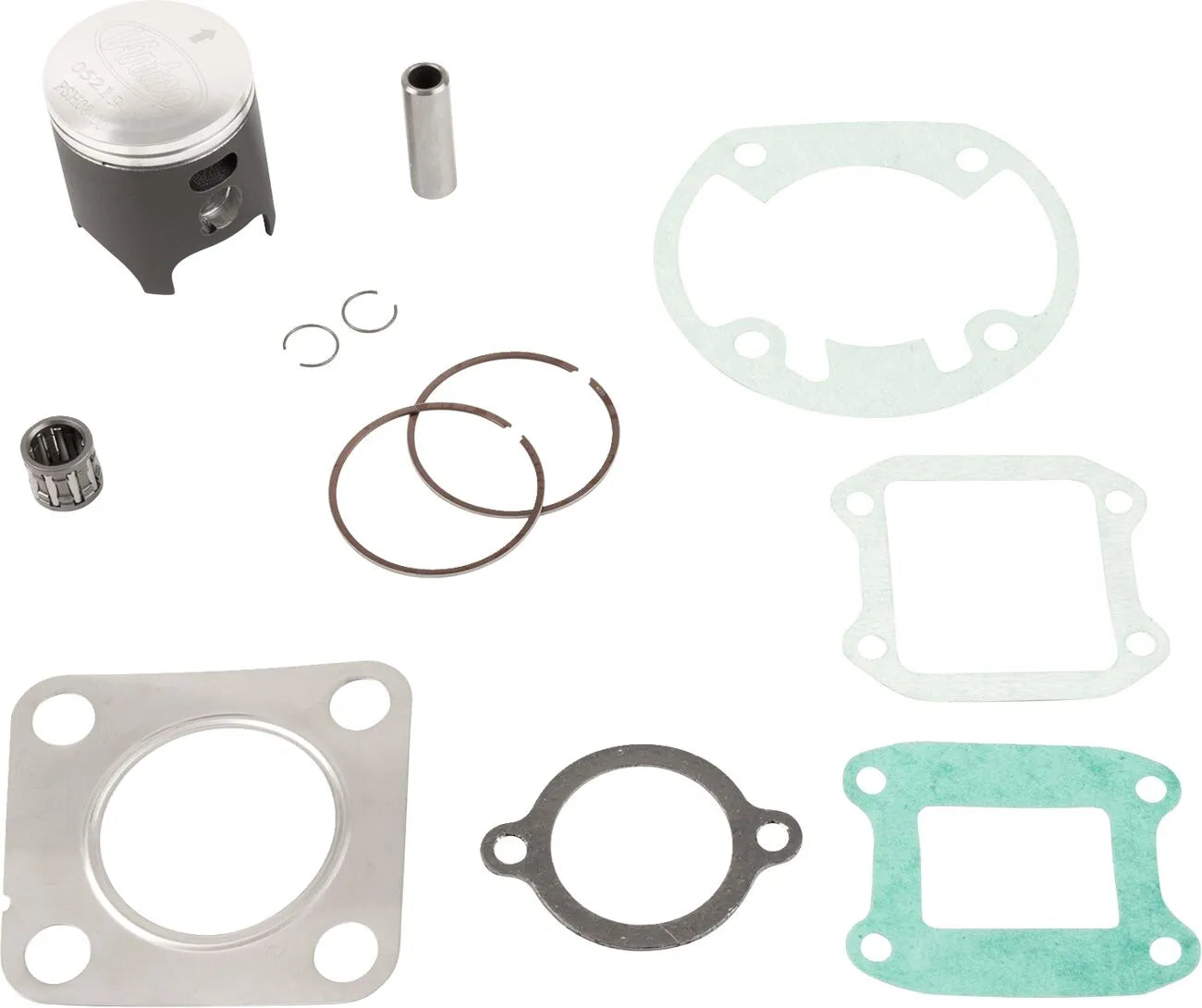

- Complete Top End Kit: Includes piston, rings, pin, clips, top end bearing, and a full top-end gasket kit (head, base, intake, and exhaust gaskets) for a comprehensive rebuild.
- Guaranteed Fitment: OEM part numbers are provided to ensure correct fitment for your specific 80cc 2-stroke motorcycle engine.
Technical Specifications
- Style: Top End Kit
- Engine Type: 2-Stroke
- Displacement: 80 cc
- Bore Size: 49.50 mm
- Piston Diameter: 49.45 mm
- Bore - Oversize: Standard
- Piston Material: Forged
- Skirt Coating: Molybdenum Disulphide
- Vendor part number
- KTH10-00
- Product name
- Piston Kit
- Style
- Top End
- Bore size
- 49,50 mm
- Displacement
- 80 cc
- Piston material
- Forged
- Width
- 164 mm
- Height
- 104 mm
- Length
- 202 mm
- Piston diameter
- 49.45 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 2-Stroke
- Units
- Kit
