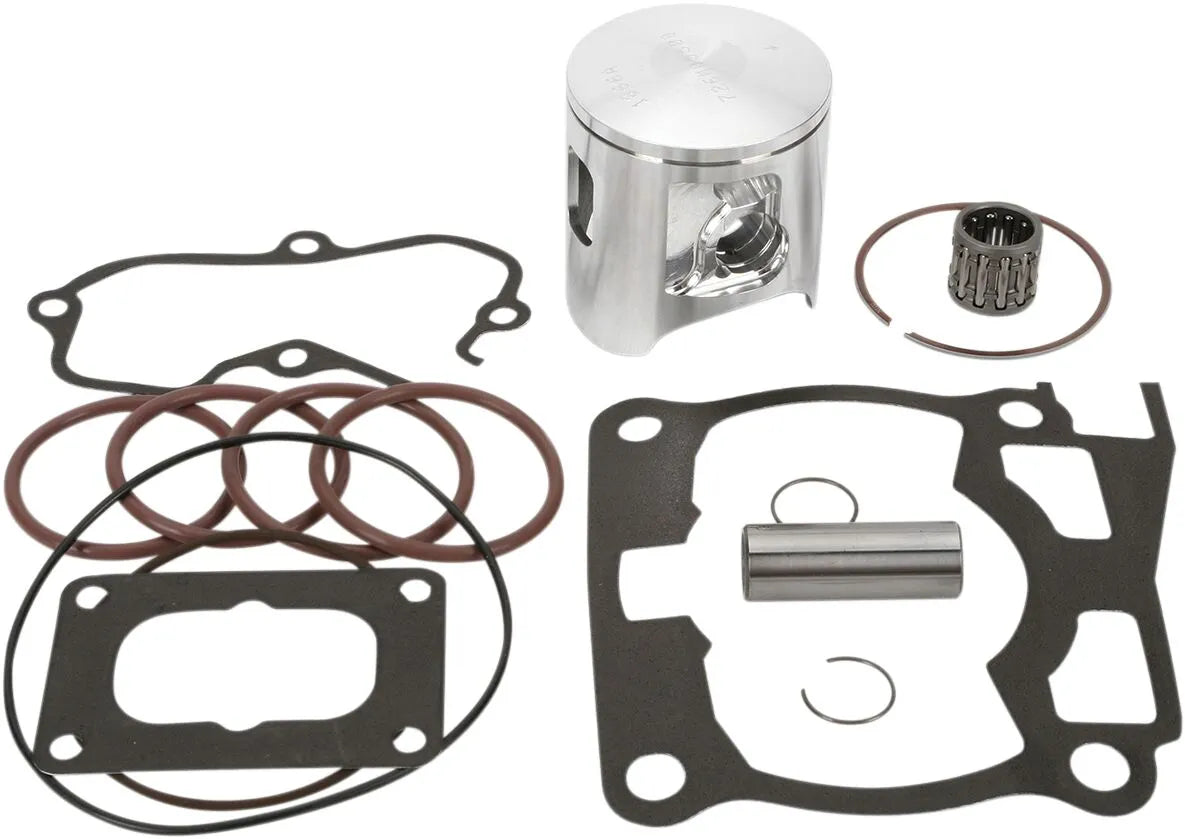

Wiseco Piston Kit with Gaskets - 54mm Bore - 124cc - Standard - PK1348
Product info
- Item number
- 09030288
- Manufacturer number
- PK1348
- Position
The Wiseco 124cc 2-Stroke Piston Kit provides everything needed for a complete top-end rebuild, delivering enhanced performance and reliability for your two-stroke engine. This kit ensures optimal compression and power delivery, making it an ideal choice for both recreational riders and competitive racers. Built to stringent quality standards, Wiseco's forged pistons offer superior strength and durability compared to cast alternatives.
Description
This comprehensive piston kit from Wiseco is engineered for a direct fit and optimized performance in 124cc 2-stroke engines. Each kit includes a high-performance piston crafted from 4032 aluminum alloy, known for its exceptional strength and heat resistance. The kit also contains precision-matched rings, a hardened wrist pin, circlips, and a complete top-end gasket kit, ensuring a leak-free seal and reliable operation. Wiseco pistons are designed to maximize engine efficiency and power output across the RPM range. Installation is straightforward for experienced mechanics, offering a significant upgrade to your engine's performance and longevity. Upgrade your 2-stroke engine with the Wiseco 124cc piston kit and experience the difference in power and reliability. Wiseco is a trusted name in performance engine components. Get your Wiseco piston kit today!
Features & highlights
- Complete kit for a full top-end rebuild, saving time and effort.
- High-performance piston made from 4032 aluminum alloy for superior strength.
- Precision-matched rings ensure optimal compression and power.
- Top-end gasket kit included for a leak-free and reliable seal.
- Designed for a direct fit in 124cc 2-stroke engines.
- Enhances engine efficiency and power output across the RPM range.
Technical specifications
- Brand: Wiseco
- Part Number: PK1348
- Bore Size: 54.00 mm
- Piston Diameter: 53.95 mm
- Displacement: 124 cc
- Engine Type: 2-Stroke
- Piston Material: 4032 Aluminum Alloy
- Skirt Coating: Non-Coated
- Stroke Length: 54.50 mm
- Type: Top End
- Units: Kit
Important to know
- Wiseco pistons must be fitted with Wiseco rings.
- Wiseco ring types are not interchangeable (e.g., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
- Brand
- WISECO
- Vendor part number
- PK1348
- Product name
- Rebuild Kit
- Bore size
- 54,00 mm
- Displacement
- 124 cc
- Piston material
- 4032 Aluminum Alloy
- Stroke length
- 54,50 mm
- Piston diameter
- 53.95 mm
- Skirt coating
- Non-Coated
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
