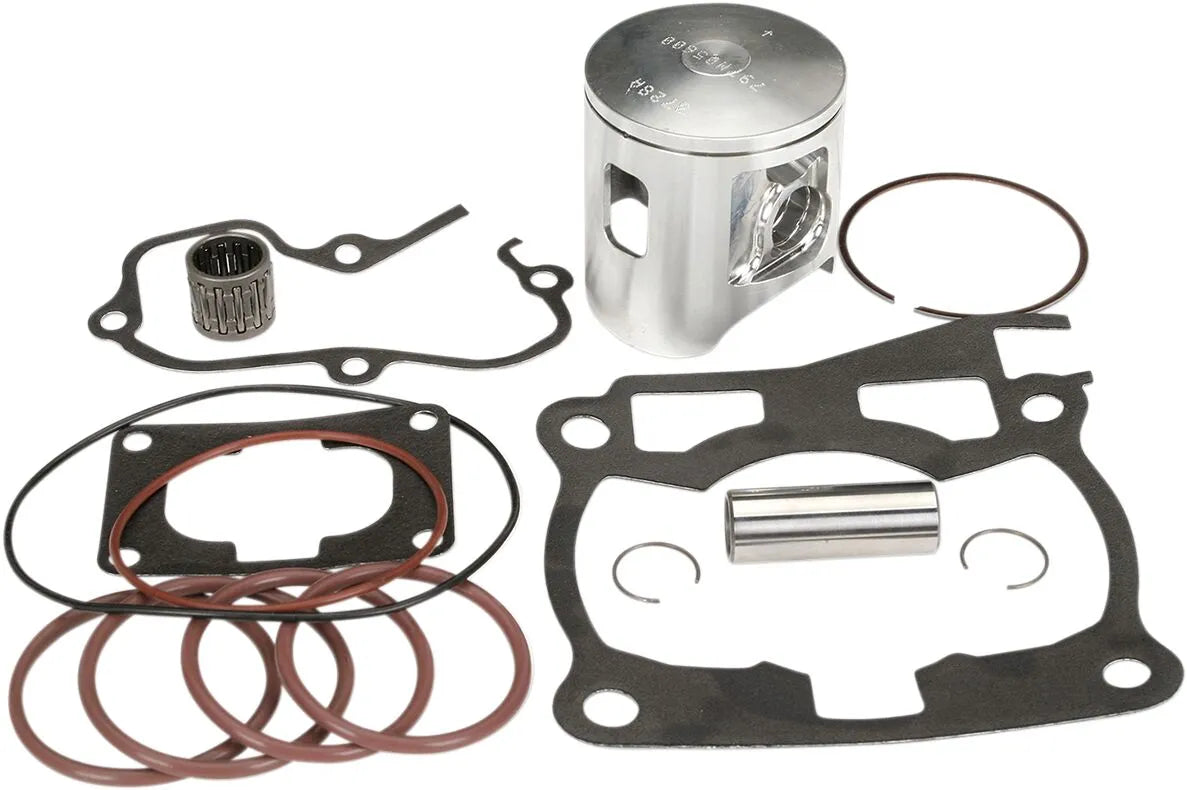

Wiseco Piston Kit with Gaskets - 56mm Bore - 125cc - +2.00mm - PK1347
Product info
- Item number
- 09030250
- Manufacturer number
- PK1347
- Position
Upgrade your 2-stroke engine with the Wiseco High Performance Piston Kit, designed for superior power and reliability. This complete kit ensures a perfect top-end rebuild, offering enhanced performance and longevity for your 125cc engine. Trust Wiseco for the ultimate in piston technology and experience the difference in your machine's performance.
Description
The Wiseco High Performance Piston Kit provides everything needed for a complete top-end rebuild. Engineered from high-quality 4032 aluminum alloy, this piston kit delivers exceptional strength and heat resistance. Designed specifically for 2-stroke engines, this kit maximizes combustion efficiency, increasing horsepower and torque. The kit includes Wiseco pistons, rings, wrist pins, circlips, and a top-end gasket kit. The +2.00 mm oversized piston, with a 55.95 mm diameter, ensures optimal compression and performance within the 56.00 mm bore. Easy to install, this kit is a must-have for any serious enthusiast looking to boost their engine's capabilities. This kit is designed for engines with a 54.50 mm stroke length and 125cc displacement.
Features & highlights
- Complete kit for a full top-end rebuild, saving you time and hassle.
- Constructed from high-quality 4032 aluminum alloy for superior strength and heat resistance.
- Optimized piston design increases horsepower and torque.
- Includes Wiseco pistons, rings, wrist pins, circlips, and a top-end gasket kit.
- Oversized +2.00 mm piston for increased compression.
- Designed specifically for 2-stroke 125cc engines.
Technical specifications
- Brand: WISECO
- Vendor Part Number: PK1347
- Bore Size: 56.00 mm
- Bore - Oversize: +2.00 mm
- Displacement: 125 cc
- Engine Type: 2-Stroke
- Piston Diameter: 55.95 mm
- Piston Material: 4032 Aluminum Alloy
- Skirt Coating: Non-Coated
- Stroke Length: 54.50 mm
- Type: Top End
- Units: Kit
Important to know
- Wiseco pistons must be fitted with Wiseco rings.
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
- Brand
- WISECO
- Vendor part number
- PK1347
- Product name
- Rebuild Kit
- Bore size
- 56,00 mm
- Displacement
- 125 cc
- Piston material
- 4032 Aluminum Alloy
- Stroke length
- 54,50 mm
- Piston diameter
- 55.95 mm
- Skirt coating
- Non-Coated
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
