Wiseco 4-Stroke Piston Kit - 67.5mm Bore - PK1048
Product info
- Item number
- 09030355
- Manufacturer number
- PK1048
- Position
Upgrade your 4-stroke engine's performance with the Wiseco High-Performance Piston Kit. This complete kit provides everything you need for a top-end rebuild, ensuring optimal power and reliability. Wiseco's reputation for quality and precision makes this piston kit an excellent choice for enthusiasts and professionals alike.
Description
The Wiseco Piston Kit delivers improved engine performance and durability. Manufactured from high-quality 2618 aluminum alloy, the piston offers exceptional strength and heat resistance. The kit is designed for a 215cc 4-stroke engine with a 67.50 mm bore size and 61.00 mm stroke length, achieving a 9.3:1 compression ratio. This optimized compression boosts horsepower and torque throughout the RPM range. The kit includes a top-end gasket kit, providing all the necessary seals for a leak-free installation. Remember to use Wiseco rings specifically designed for Wiseco pistons to guarantee proper fit and function.
Features & highlights
- Complete top-end rebuild kit for 4-stroke engines, simplifying your rebuild project.
- High-performance piston crafted from 2618 aluminum alloy for superior strength and heat dissipation.
- Optimized 9.3:1 compression ratio enhances horsepower and torque.

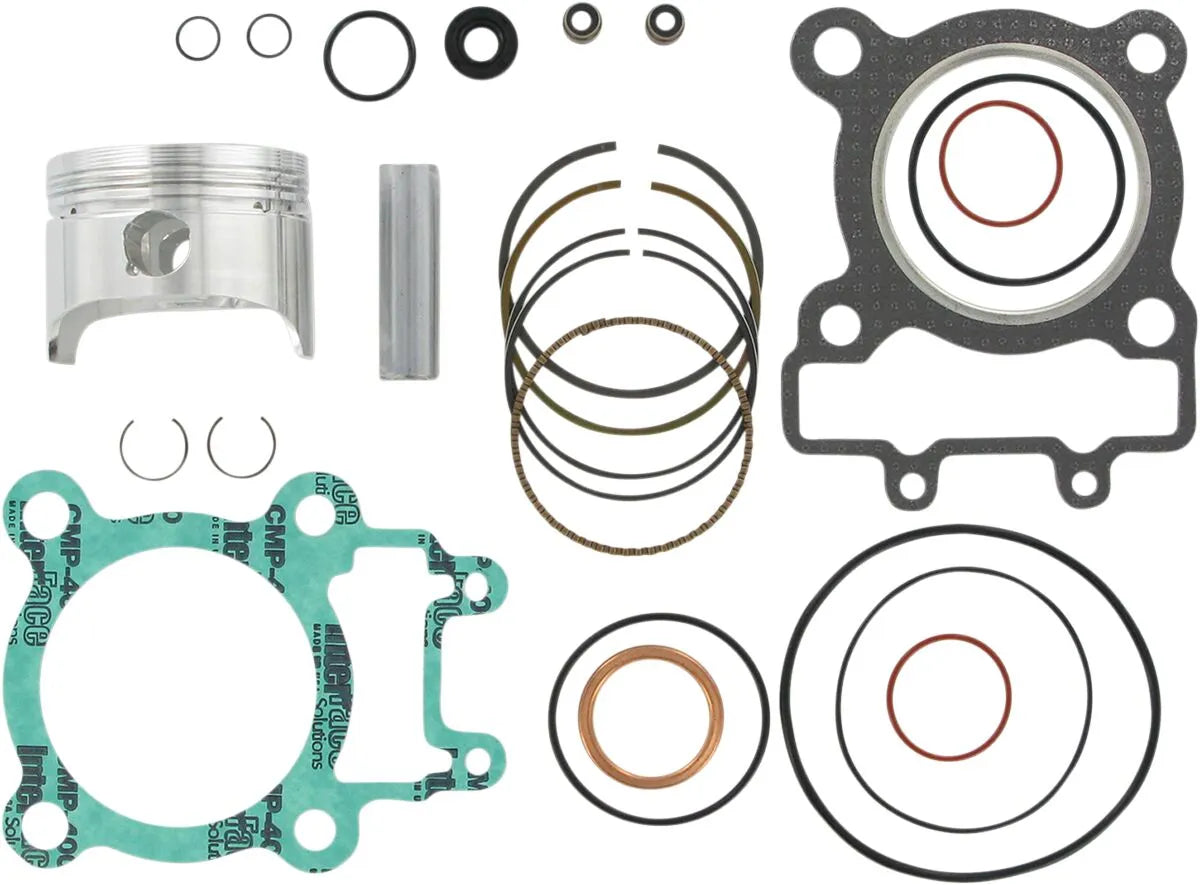

- Includes piston, rings, wrist pin, circlips, and top-end gasket kit for a comprehensive solution.
- Precision engineered for a 215cc engine with a 67.50 mm bore and 61.00 mm stroke, ensuring perfect fitment.
- Non-coated piston skirt maintains tight tolerances and reduces friction.
Technical specifications
- Brand: WISECO
- Part Number: PK1048
- Bore Size: 67.50 mm
- Compression Ratio: 9.3:1
- Displacement: 215 cc
- Engine Type: 4-Stroke
- Piston Diameter: 67.45 mm
- Piston Material: 2618 Aluminum Alloy
- Skirt Coating: Non-Coated
- Stroke Length: 61.00 mm
- Type: Top End
Important to know
This kit requires the use of Wiseco rings specifically designed for Wiseco pistons. Wiseco ring types are not interchangeable. Cylinder sleeves must be purchased separately.
- Brand
- WISECO
- Vendor part number
- PK1048
- Product name
- Rebuild Kit
- Bore size
- 67,50 mm
- Compression ratio
- 9.3:1
- Displacement
- 215 cc
- Piston material
- 2618 Aluminum Alloy
- Stroke length
- 61,00 mm
- Piston diameter
- 67.45 mm
- Skirt coating
- Non-Coated
- Engine type
- 4-Stroke
- Type
- Top End
- Units
- Kit
