Wiseco 4-Stroke Piston Kit with Gaskets - 77mm Bore - PK1880
Product info
- Item number
- 09030942
- Manufacturer number
- PK1880
- Position
Upgrade your 4-stroke engine with the Wiseco High-Performance Piston Kit. This complete kit provides everything you need for a top-end rebuild, boosting your engine's performance and reliability. Wiseco pistons are forged from high-strength 2618 aluminum alloy, ensuring durability under demanding conditions.
Description
The Wiseco Piston Kit delivers enhanced power and efficiency for your 250cc 4-stroke engine. Featuring a 77.00 mm bore size and a 14.5:1 compression ratio, this kit is designed for optimal combustion and increased horsepower. The ArmorGlide® skirt coating reduces friction and wear, extending the life of your piston and cylinder. This top-end rebuild kit includes the piston, rings, wrist pin, circlips, and a complete top-end gasket kit, providing all necessary components for a seamless installation. Ensure you're using Wiseco rings with Wiseco pistons for optimal performance. Experience the superior quality and performance of Wiseco, the choice of professionals and enthusiasts alike. Enhance your engine's capabilities with this meticulously engineered piston kit.
Features & highlights
- Complete top-end rebuild kit for 4-stroke engines.
- Forged from high-strength 2618 aluminum alloy for superior durability.
- ArmorGlide® skirt coating minimizes friction and maximizes wear resistance.
- Optimized for 250cc engines with a 77.00 mm bore size.
- High 14.5:1 compression ratio for improved engine performance.

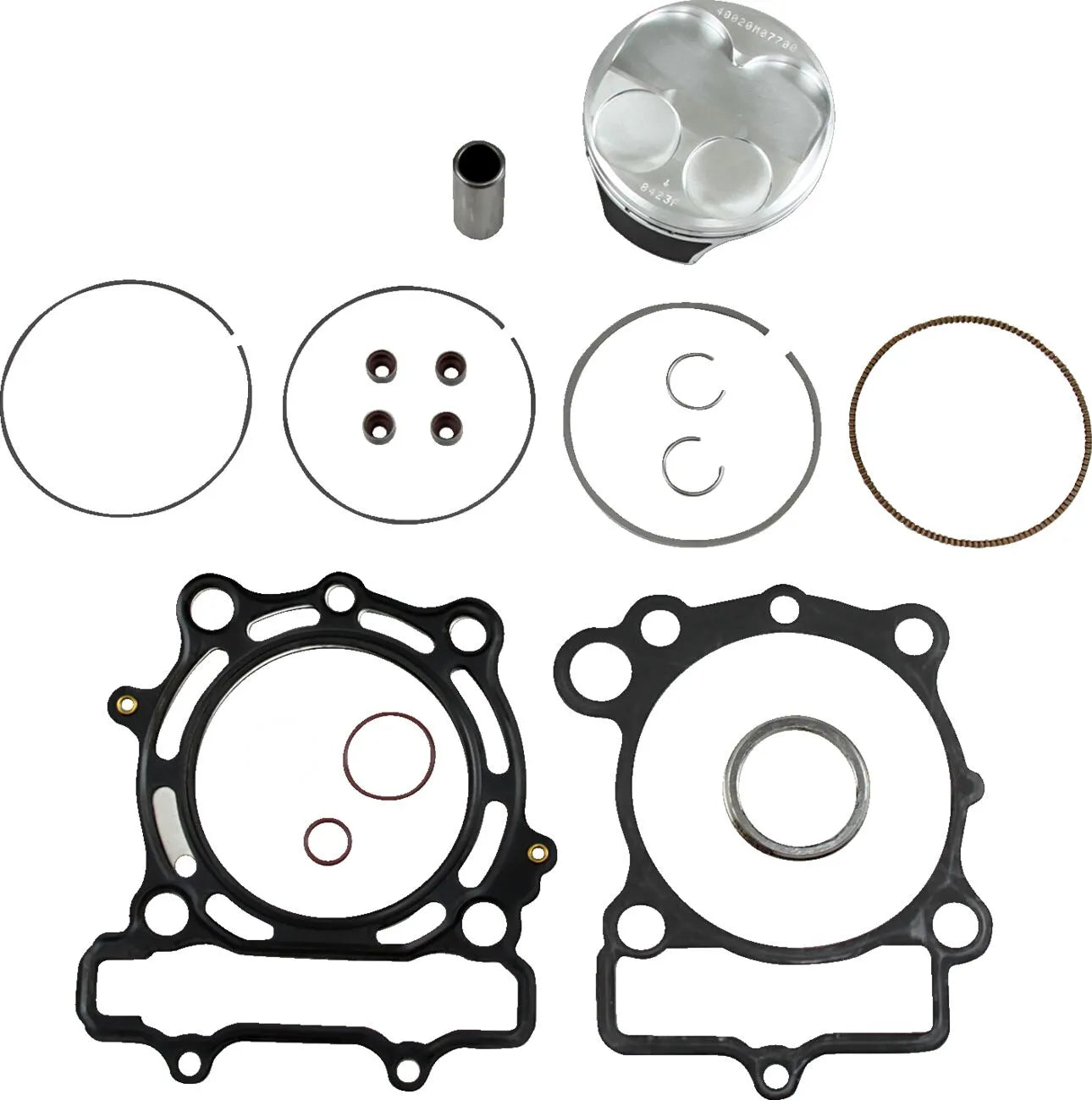

- Includes piston, rings, wrist pin, circlips, and top-end gasket kit.
- Designed for easy installation and reliable operation.
Technical specifications
- Brand: WISECO
- Product Name: Rebuild Kit
- Vendor Part Number: PK1880
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Bore Size: 77.00 mm
- Stroke Length: 53.60 mm
- Compression Ratio: 14.5:1
- Piston Diameter: 76.96 mm
- Piston Material: 2618 Aluminum Alloy
- Skirt Coating: ArmorGlide®
- Type: Top End
- Units: Kit
Important to know
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Wiseco pistons can be fitted only with Wiseco rings.
- Cylinder sleeves must be purchased separately.
- Brand
- WISECO
- Vendor part number
- PK1880
- Product name
- Rebuild Kit
- Bore size
- 77,00 mm
- Compression ratio
- 14.5:1
- Displacement
- 250 cc
- Piston material
- 2618 Aluminum Alloy
- Stroke length
- 53,60 mm
- Piston diameter
- 76.96 mm
- Skirt coating
- ArmorGlide®
- Engine type
- 4-Stroke
- Type
- Top End
- Units
- Kit
