Wiseco 4-Stroke Piston Kit - 66.50mm Bore - 192cc - +1.00mm - PK1126

The Wiseco 4-Stroke Piston Kit provides everything needed for a complete top-end rebuild, ensuring optimal engine performance and reliability. This kit is designed for enthusiasts and professionals seeking a durable and high-performing piston solution.

Description

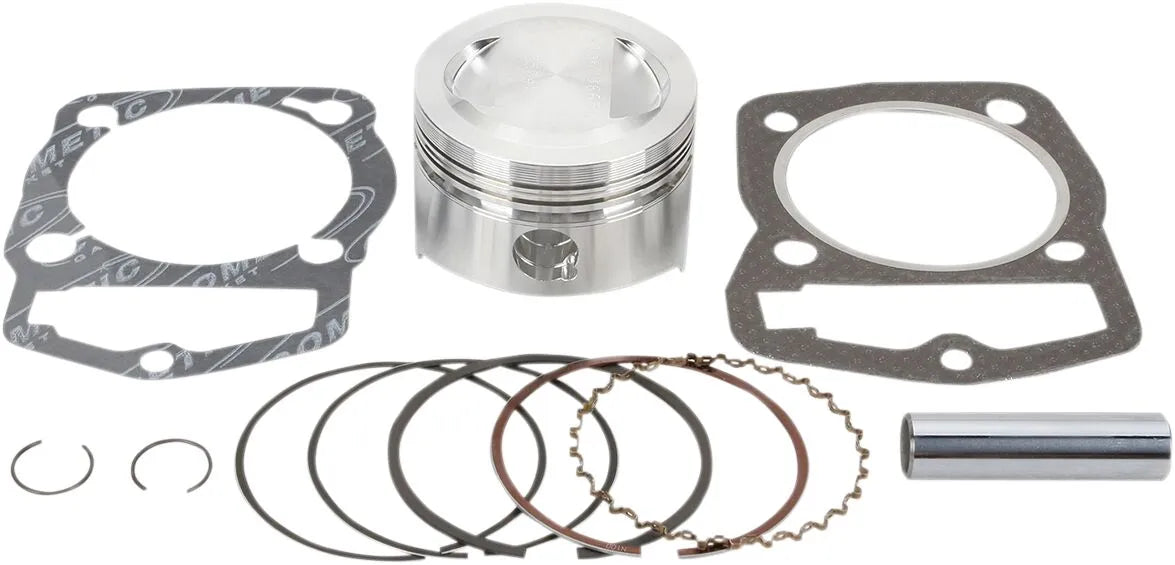

This comprehensive Wiseco piston kit includes a high-quality piston, rings, wrist pin, circlips, and a top-end gasket kit, catering to one complete engine. The piston is crafted from 2618 aluminum alloy, known for its strength and heat resistance, and delivers a 10.0:1 compression ratio. Designed for 4-stroke engines with a 192cc displacement, this kit enhances engine efficiency and power. Ensure your engine rebuild is seamless with Wiseco's precision-engineered components, offering superior fit and performance. Wiseco's attention to detail ensures that your engine operates at its peak potential.

Features & highlights

• Complete top-end rebuild kit for 4-stroke engines.
• Includes piston, rings, wrist pin, circlips, and top-end gasket kit.
• Piston made from high-strength 2618 aluminum alloy.
• Optimized for 192cc displacement engines.
• Provides a 10.0:1 compression ratio for enhanced performance.
• Designed for easy installation and superior fit.

Technical specifications

• Brand: Wiseco
• Product Name: Rebuild Kit
• Engine Type: 4-Stroke
• Displacement: 192 cc
• Bore Size: 66.50 mm
• Bore - Oversize: +1.00 mm
• Piston Diameter: 66.45 mm
• Stroke Length: 57.80 mm
• Compression Ratio: 10.0:1
• Piston Material: 2618 Aluminum Alloy
• Skirt Coating: Non-Coated
• Type: Top End

Important to know

Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC). Cylinder sleeves must be purchased separately. The correct replacement ring style is stamped on the dome of the piston (e.g., "C" for "XC", "G" for "XG", and "H" for "XH").
