Wiseco 4-Stroke Piston Kit - 94mm Bore - PK1068

Upgrade your 4-stroke engine with the Wiseco High-Performance Piston Kit. This complete kit provides everything needed for a top-end rebuild, delivering enhanced performance and reliability. Experience improved power and efficiency with Wiseco's precision-engineered components.

Description

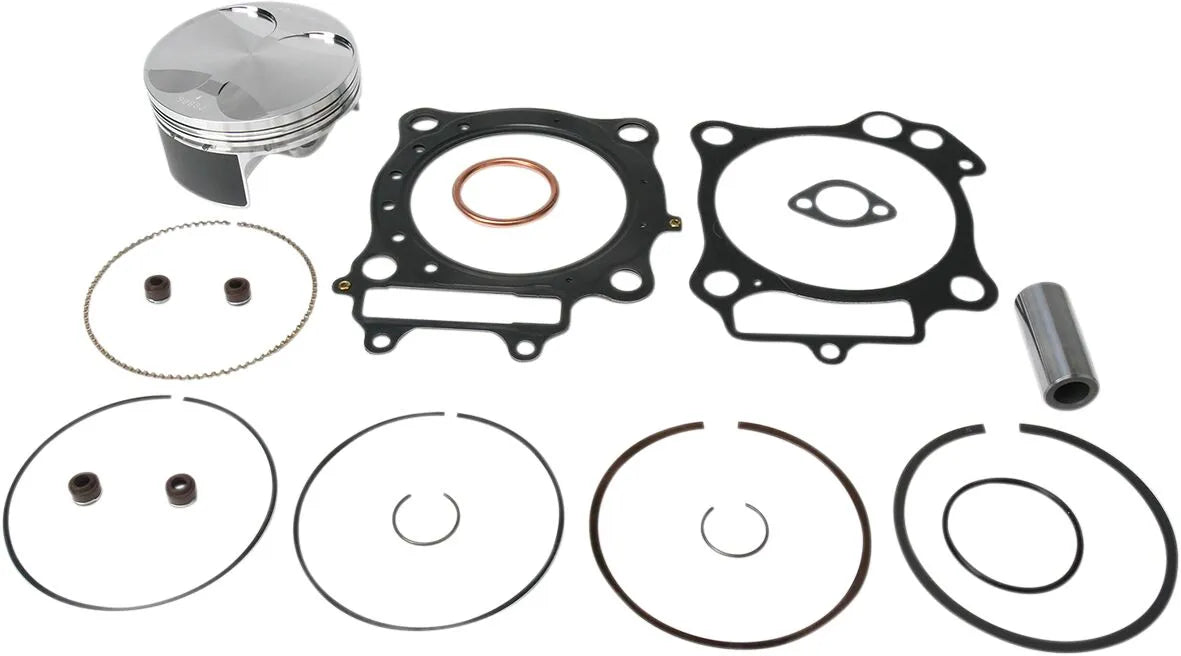

The Wiseco High-Performance Piston Kit is designed for enthusiasts and professionals seeking to maximize their engine's potential. This kit includes a high-quality piston, performance rings, wrist pin, circlips, and a top-end gasket kit, providing all the essential components for a complete top-end rebuild. The piston is crafted from 2618 aluminum alloy for superior strength and heat resistance, while the ArmorGlide® skirt coating minimizes friction and wear. With a compression ratio of 11.5:1 and a displacement of 450cc, this kit is optimized for 4-stroke engines, delivering increased horsepower and torque. Precision engineering ensures optimal performance and extended engine life, making it a reliable choice for demanding applications. Installation is straightforward for experienced mechanics.

Features & highlights

• Complete top-end rebuild kit for one 4-stroke engine.
• Piston crafted from high-strength 2618 aluminum alloy.
• ArmorGlide® skirt coating reduces friction and extends piston life.
• Optimized 11.5:1 compression ratio for enhanced power and torque.
• Includes all necessary gaskets, rings, wrist pin, and circlips.
• Precision engineered for optimal performance and reliability.

Technical specifications

• Brand: Wiseco
• Vendor Part Number: PK1068
• Bore Size: 94.00 mm
• Compression Ratio: 11.5:1
• Displacement: 450 cc
• Engine Type: 4-Stroke
• Piston Diameter: 93.92 mm
• Piston Material: 2618 Aluminum Alloy
• Product Name: Rebuild Kit
• Skirt Coating: ArmorGlide®
• Stroke Length: 64.80 mm
• Type: Top End
• Units: Kit

Important to know

Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC). Wiseco pistons can be fitted only with Wiseco rings. Cylinder sleeves must be purchased separately.
