Wiseco GP Piston Kit - 47.50mm Bore - 84.70cc - Standard - 838M04750
Product info
- Item number
- 09100323
- Manufacturer number
- 838M04750
- Position
The Wiseco GP Series Piston Kit is engineered for endurance and high-RPM performance, delivering maximum wear resistance and increased horsepower. Forged and machined in the USA, this piston kit provides superior reliability for demanding 2-stroke engines.
Description
Wiseco's GP Series piston kits are designed with less external machining, ensuring an improved seal within the bore, which significantly increases compression. Each piston undergoes an electra-coating process on the dome, ring groove, and pin bore. This specialized coating provides exceptional protection against micro-welding, galling, and detonation, ensuring long-lasting durability. The ArmorGlide® skirt coating further reduces friction and minimizes noise, unlocking greater horsepower potential. Whether you're a professional racer or an avid enthusiast, the Wiseco GP Series Piston Kit offers unmatched performance and reliability.
Features & highlights
- Electra-coated dome, ring groove, and pin bore for superior wear resistance.
- GP Series design enhances bore seal for increased compression.
- ArmorGlide® skirt coating reduces friction and noise, maximizing horsepower.
- Engineered for endurance and high RPM applications.
- Forged and machined in the USA, ensuring top-tier quality and precision.

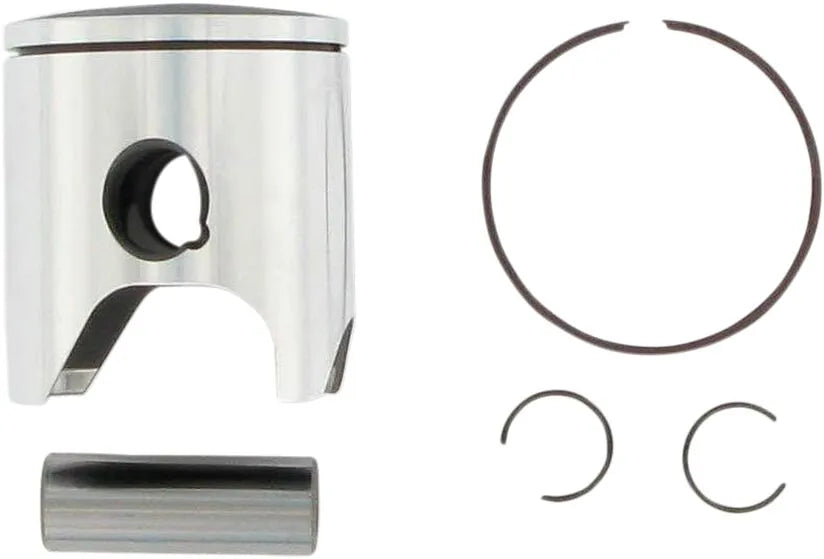

- Complete kit includes piston, ring(s), wrist pin, and circlips for a straightforward installation.
Technical specifications
- Brand: Wiseco
- Product Name: Piston Kit
- Piston Material: 4032 Aluminum Alloy
- Engine Type: 2-Stroke
- Displacement: 84.70 cc
- Bore Size: 47.50 mm
- Piston Diameter: 47.45 mm
- Stroke Length: 47.80 mm
- Bore - Oversize: Standard
- Skirt Coating: ArmorGlide®
Important to know
This kit includes the piston, ring(s), wrist pin, and circlips. Please ensure compatibility with your specific engine model before installation.
- Brand
- WISECO
- Vendor part number
- 838M04750
- Product name
- Piston Kit
- Bore size
- 47,50 mm
- Displacement
- 84.70 cc
- Piston material
- 4032 Aluminum Alloy
- Stroke length
- 47,80 mm
- Piston diameter
- 47.45 mm
- Skirt coating
- ArmorGlide®
- Engine type
- 2-Stroke
- Units
- Kit
