Wiseco 4-Stroke Piston Kit with Gaskets - 75.00mm Bore - PK1023
Product info
- Item number
- 09030505
- Manufacturer number
- PK1023
- Position
Upgrade your 4-stroke engine's performance with the Wiseco High-Performance Piston Kit. This complete kit delivers improved power and reliability for enthusiasts and professionals alike. Get ready to experience enhanced throttle response and increased engine efficiency.
Description
The Wiseco High-Performance Piston Kit is engineered to provide a significant boost in engine performance. Designed for 4-stroke engines with a 246cc displacement, this kit features a high-quality piston crafted from 2618 aluminum alloy, known for its exceptional strength and heat resistance. The optimized 12.0:1 compression ratio ensures maximum power output. Each kit includes the piston, rings, wrist pin, circlips, and a top-end gasket kit, providing everything needed for a complete engine rebuild. Wiseco's commitment to precision manufacturing ensures that each component meets stringent quality standards, resulting in improved engine durability and longevity. Ideal for both performance enthusiasts and professional mechanics looking to enhance engine capabilities. The piston diameter is 74.95 mm and is designed for a bore size of 75.00 mm and stroke length of 57.30 mm.
Features & highlights
- Complete rebuild kit for one 4-stroke engine with 246cc displacement.
- Piston is forged from high-strength 2618 aluminum alloy for superior durability.
- Optimized 12.0:1 compression ratio maximizes power and throttle response.

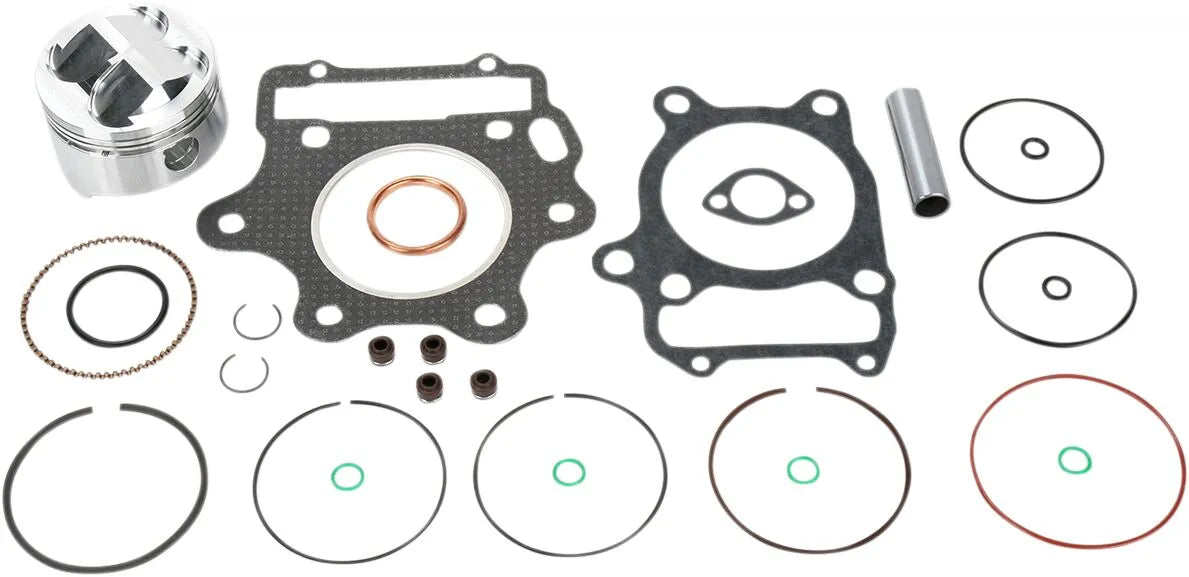

- Includes piston, rings, wrist pin, circlips, and top-end gasket kit.
- Precision engineered for enhanced performance and reliability.
- Ideal for performance enthusiasts and professional mechanics.
Technical specifications
- Brand: Wiseco
- Product Name: Rebuild Kit
- Vendor Part Number: PK1023
- Engine Type: 4-Stroke
- Displacement: 246 cc
- Bore Size: 75.00 mm
- Stroke Length: 57.30 mm
- Piston Diameter: 74.95 mm
- Compression Ratio: 12.0:1
- Piston Material: 2618 Aluminum Alloy
- Skirt Coating: Non-Coated
- Type: Top End
- Units: Kit
Important to know
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Wiseco pistons can be fitted only with Wiseco rings.
- Cylinder sleeves must be purchased separately.
- Brand
- WISECO
- Vendor part number
- PK1023
- Product name
- Rebuild Kit
- Bore size
- 75,00 mm
- Compression ratio
- 12.0:1
- Displacement
- 246 cc
- Piston material
- 2618 Aluminum Alloy
- Stroke length
- 57,30 mm
- Piston diameter
- 74.95 mm
- Skirt coating
- Non-Coated
- Engine type
- 4-Stroke
- Type
- Top End
- Units
- Kit
