Wiseco 4-Stroke Piston Kit - 97mm Bore - PK1059

Upgrade your 4-stroke engine with the Wiseco High-Performance Piston Kit. This comprehensive kit provides everything needed for a top-end rebuild, ensuring optimal performance and reliability. Experience enhanced power and durability with Wiseco's premium components, designed for enthusiasts and professionals alike.

Description

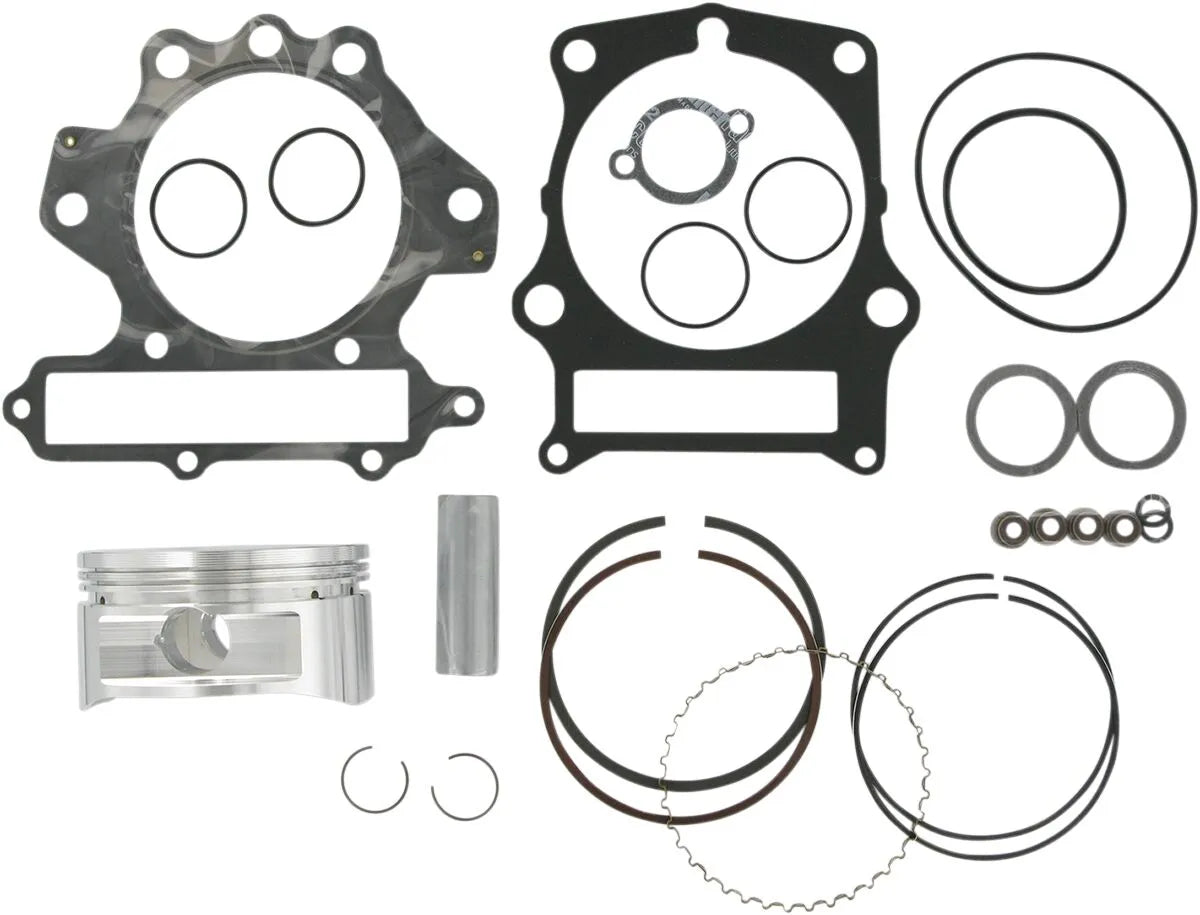

The Wiseco Piston Kit is engineered to deliver exceptional performance and longevity. Crafted from high-quality 2618 aluminum alloy, the piston offers superior strength and heat resistance. With a 96.92 mm piston diameter and 97.00 mm bore size, this kit is specifically designed for 598cc 4-stroke engines with an 84.00 mm stroke length. The 8.5:1 compression ratio ensures optimal power delivery. This top-end kit includes a complete set of pistons, rings, wrist pins, circlips, and a top-end gasket kit, providing all the necessary components for a complete engine rebuild. Wiseco's commitment to quality and precision makes this piston kit an ideal choice for maximizing your engine's potential.

Features & highlights

• Complete top-end rebuild kit for 4-stroke engines.
• High-performance piston made from 2618 aluminum alloy for superior strength.
• Includes pistons, rings, wrist pins, circlips, and a top-end gasket kit.
• Optimized 8.5:1 compression ratio for enhanced power delivery.
• Precision-engineered for a 97.00 mm bore size (96.92 mm piston diameter).
• Designed for 598cc displacement with a stroke length of 84.00 mm.

Technical specifications

• Brand: WISECO
• Part Number: PK1059
• Engine Type: 4-Stroke
• Displacement: 598 cc
• Bore Size: 97.00 mm
• Piston Diameter: 96.92 mm
• Stroke Length: 84.00 mm
• Compression Ratio: 8.5:1
• Piston Material: 2618 Aluminum Alloy
• Skirt Coating: Non-Coated
• Type: Top End
• Units: Kit

Important to know

• Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
• Wiseco pistons can be fitted only with Wiseco rings.
• Cylinder sleeves must be purchased separately.
