Wossner 4-Stroke Forged Piston Kit - 77.01mm Bore - Size B - 8814DB

The Wossner Piston Kit is engineered to deliver superior performance and reliability for your 4-stroke engine. Designed with meticulous attention to detail, this kit provides enhanced lubrication, reduced friction, and improved sealing for optimal engine operation. Experience the difference in power and efficiency with Wossner's precision-crafted piston kit.

Description

This Wossner Piston Kit enhances your engine's performance through improved design and high-quality materials. The piston features enhanced oiling slots, radial boss machining, and annular grooves, ensuring superior wrist pin lubrication. Its lightweight construction and tight piston wall clearance result in a quieter running engine, while the skirt coating minimizes friction and aids in proper break-in. Ring land treatment further improves ring seal and oil control. The double-bridged forging design (where applicable) adds extra strength and durability. Upgrade your 4-stroke engine with the Wossner Piston Kit for improved power, efficiency, and longevity. The kit is designed for engines with a 77.01mm bore size, providing a 13.5:1 compression ratio.

Features & highlights

• Enhanced wrist pin lubrication improves overall engine reliability and performance.
• Lightweight piston design reduces vibration and ensures quieter engine operation.
• Skirt coating minimizes friction during break-in and extends engine life.
• Ring land treatment optimizes ring seal for maximum power and oil control.
• Forged aluminum alloy construction provides exceptional strength and durability.

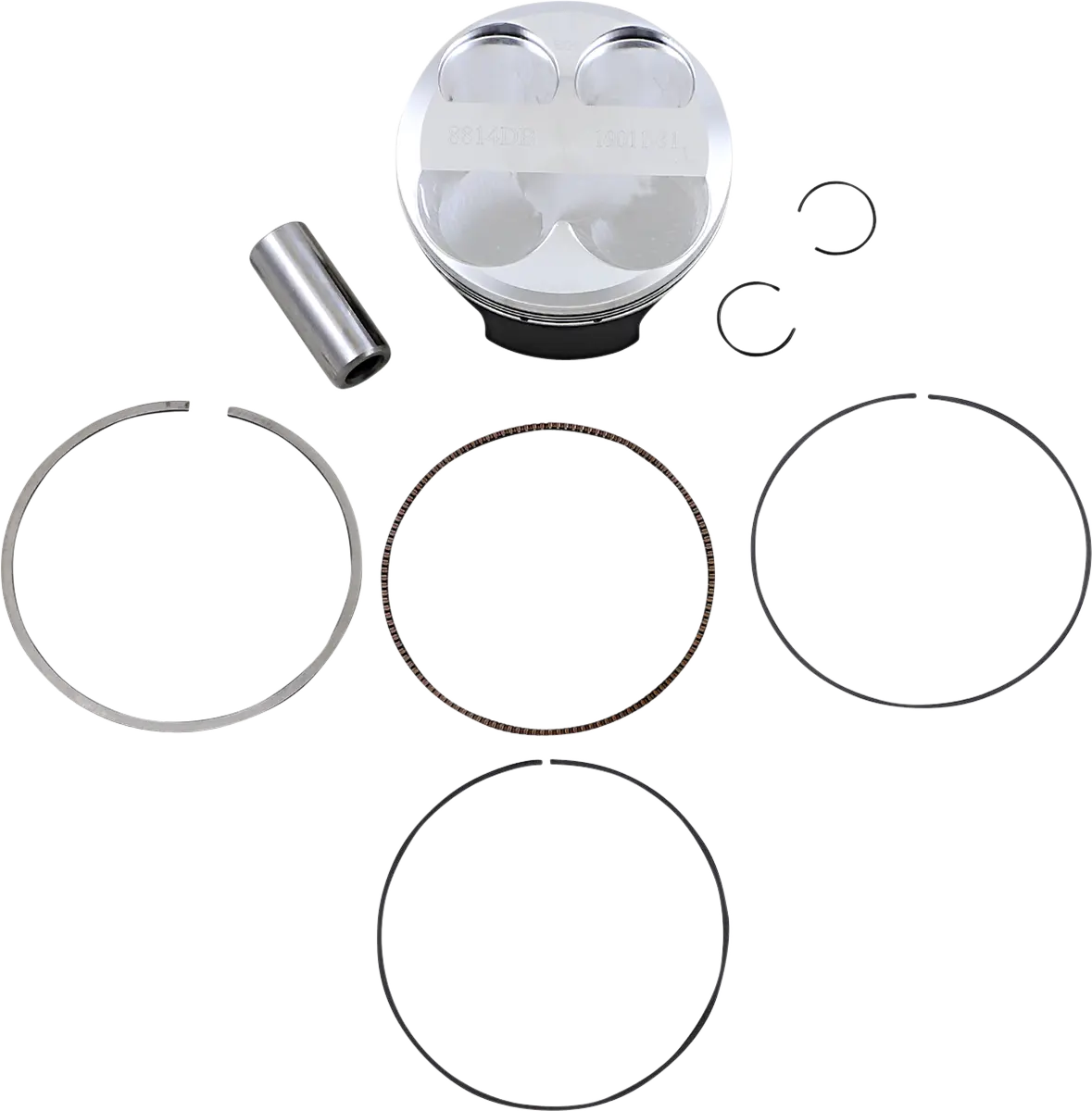

• Complete kit includes piston, rings, wrist pin, and pin locks for a hassle-free installation.

Technical specifications

• Brand: Wossner
• Product Name: Piston Kit
• Engine Type: 4-Stroke
• Piston Material: Forged Aluminum Alloy
• Bore Size: 77.01 mm
• Piston Size: 76.97 mm
• Bore - Oversize: +0.01 mm
• Stroke Length: 53.60 mm
• Compression Ratio: 13.5:1

Important to know

This kit includes the piston, rings, wrist pin, and pin locks. Professional installation is highly recommended to ensure proper fitment and performance.
