Wossner 4-Stroke Forged Piston Kit - 95mm Bore - Size A - 8630DA
Product info
- Item number
- 09104950
- Manufacturer number
- 8630DA
- Position
The Wossner Piston Kit for 4-stroke engines is engineered for superior performance and durability. This kit provides everything you need for a complete piston replacement, enhancing your engine's power and reliability. Manufactured by Wossner, a trusted name in high-performance engine components, this piston kit delivers exceptional quality and precision.
Description
This Wossner piston kit is designed to optimize your 4-stroke engine's performance. The lightweight piston features a tight piston wall clearance, contributing to a quieter running engine and reduced friction. A skirt coating further minimizes friction and improves break-in performance. Enhanced piston pin oiling slots, radial boss machining, and annular grooves ensure superior wrist pin lubrication, extending the life of critical components. The ring land treatment improves ring seal and oil control, maximizing engine efficiency and power output. Where noted, a double-bridged forging design adds extra strength and durability. Upgrade your engine with this high-quality Wossner piston kit for enhanced performance and reliability. The piston size is 94.96 mm with a bore size of 95.00 mm.
Features & highlights
- Enhanced wrist pin lubrication improves component lifespan.
- Lightweight piston design ensures quieter operation and reduced friction.
- Skirt coating minimizes friction and promotes smoother break-in.
- Ring land treatment enhances ring seal and optimizes oil control.
- Forged aluminum alloy construction provides superior strength and durability.

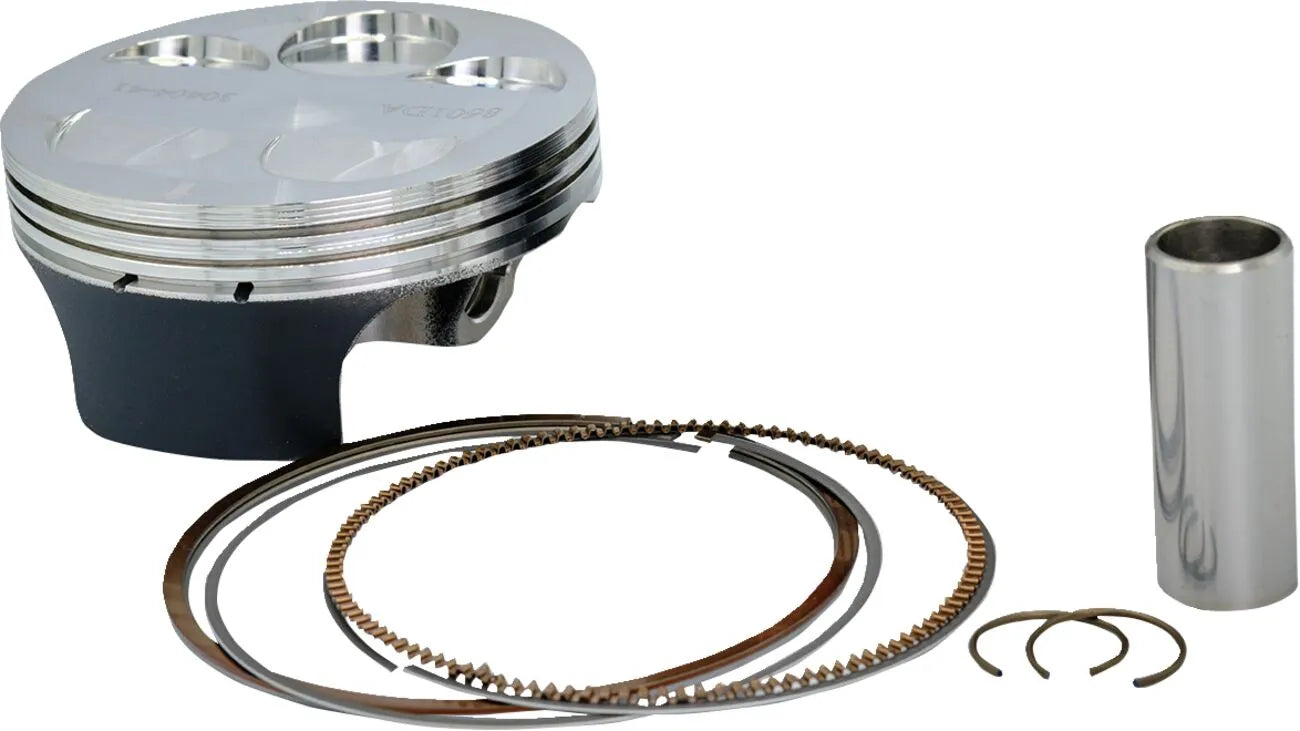

- Complete kit includes piston, rings, wrist pin, and pin locks for easy installation.
Technical specifications
- Brand: Wossner
- Part Number: 09104950
- Engine Type: 4-Stroke
- Piston Material: Forged Aluminum Alloy
- Bore Size: 95.00 mm
- Piston Size: 94.96 mm
- Compression Ratio: 12.3:1
- Stroke Length: 63.40 mm
- Bore - Oversize: Standard
Important to know
This kit includes the piston, rings, wrist pin, and pin locks. Please ensure compatibility with your specific engine model before installation.
- Brand
- WOSSNER
- Vendor part number
- 8630DA
- Product name
- Piston Kit
- Bore size
- 95,00 mm
- Compression ratio
- 12.3:1
- Piston material
- Aluminum Alloy, Forged
- Stroke length
- 63,40 mm
- Piston size
- 94.96 mm
- Engine type
- 4-Stroke
- Units
- Kit
