Wossner Premium Series Forged Piston Kit - 77mm Bore - Size A - 8814DA
Product info
- Item number
- 09104989
- Manufacturer number
- 8814DA
- Position
Upgrade your 4-stroke engine's performance with the Wossner Piston Kit. This kit delivers improved lubrication, reduced friction, and enhanced ring seal, ensuring optimal engine efficiency and longevity. Wossner's commitment to quality and performance makes this piston kit an ideal choice for enthusiasts and professionals alike.
Description
The Wossner Piston Kit is engineered for superior performance and durability in 4-stroke engines. Featuring enhanced piston pin oiling slots, radial boss machining, and annular grooves, this piston ensures improved wrist pin lubrication, reducing wear and extending engine life. The lightweight piston design incorporates a tight piston wall clearance, resulting in a quieter running engine. A skirt coating minimizes friction and aids in proper break-in. Additionally, the ring land treatment enhances ring seal and oil control, maintaining optimal compression. The double bridged forging design, where applicable, adds extra strength and rigidity. With a bore size of 77.00 mm and a compression ratio of 13.5:1, this kit is designed to deliver maximum power and reliability.
Features & highlights
- Enhanced piston pin oiling for superior wrist pin lubrication.
- Lightweight design ensures a quieter engine operation.
- Skirt coating reduces friction and improves break-in.
- Ring land treatment optimizes ring seal and oil control.
- Forged aluminum alloy construction for maximum strength.
- Designed for 4-stroke engines, delivering increased power.

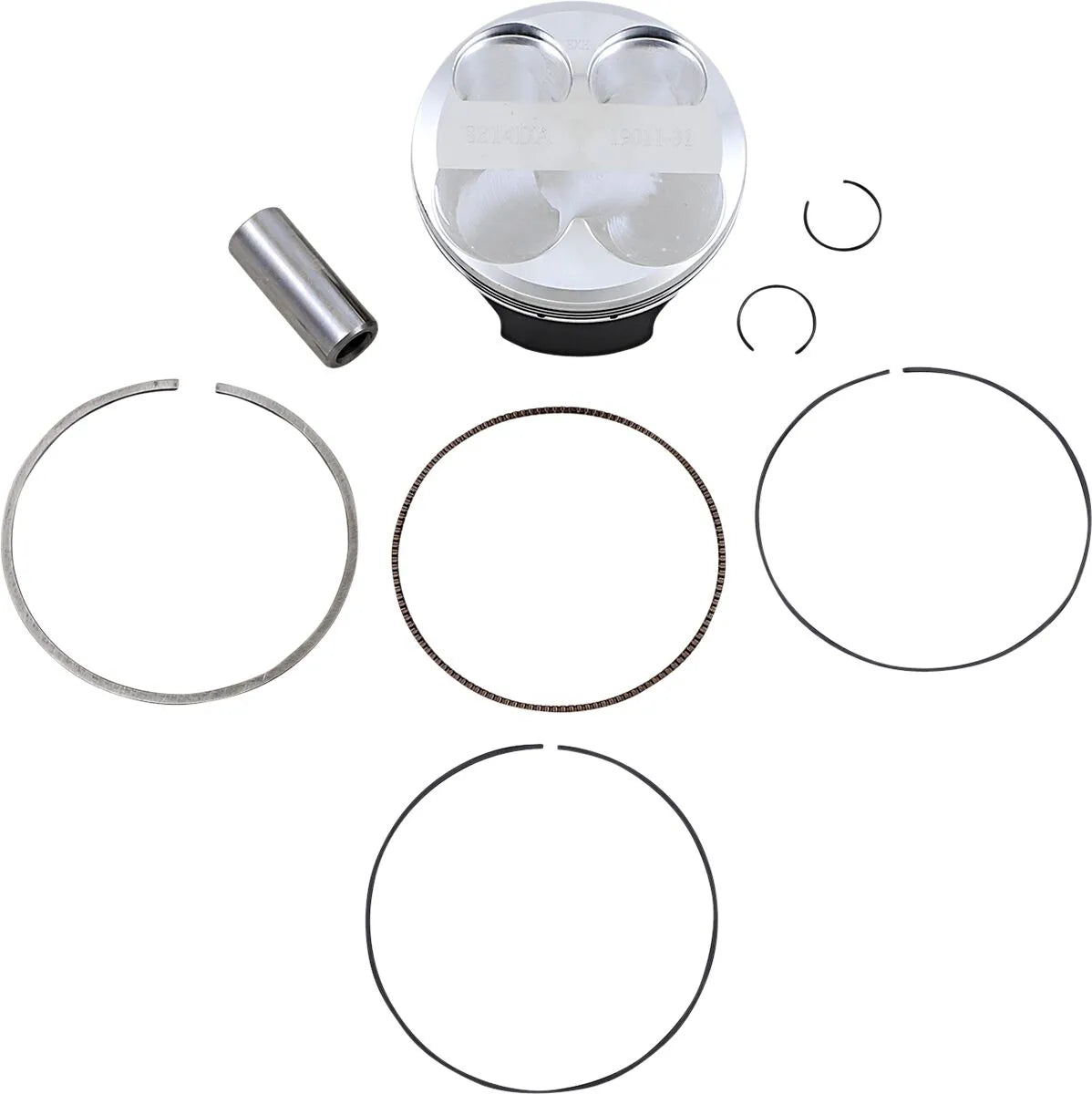

- Complete kit includes piston, rings, wrist pin, and pin locks.
Technical specifications
- Brand: Wossner
- Product Name: Piston Kit
- Piston Material: Forged Aluminum Alloy
- Engine Type: 4-Stroke
- Bore Size: 77.00 mm (76.96 mm Piston Size)
- Stroke Length: 53.60 mm
- Compression Ratio: 13.5:1
- Vendor Part Number: 8814DA
- Bore - Oversize: Standard
- Units: Kit
Important to know
Ensure proper installation and adherence to recommended torque specifications. Professional installation is recommended for optimal performance.
- Brand
- WOSSNER
- Vendor part number
- 8814DA
- Product name
- Piston Kit
- Bore size
- 77,00 mm
- Compression ratio
- 13.5:1
- Piston material
- Aluminum Alloy, Forged
- Stroke length
- 53,60 mm
- Piston size
- 76.96 mm
- Engine type
- 4-Stroke
- Units
- Kit
