Wossner Standard Series Dual Ring Piston Kit
Product info
- Item number
- 09106344
- Manufacturer number
- K7023DA-2
- Position
The Wossner 800cc Piston Kit is engineered for superior performance and exceptional durability in 2-stroke motorcycle engines. This high-quality, forged aluminum piston kit ensures optimal engine function and longevity, providing a reliable upgrade for your ride.
Description

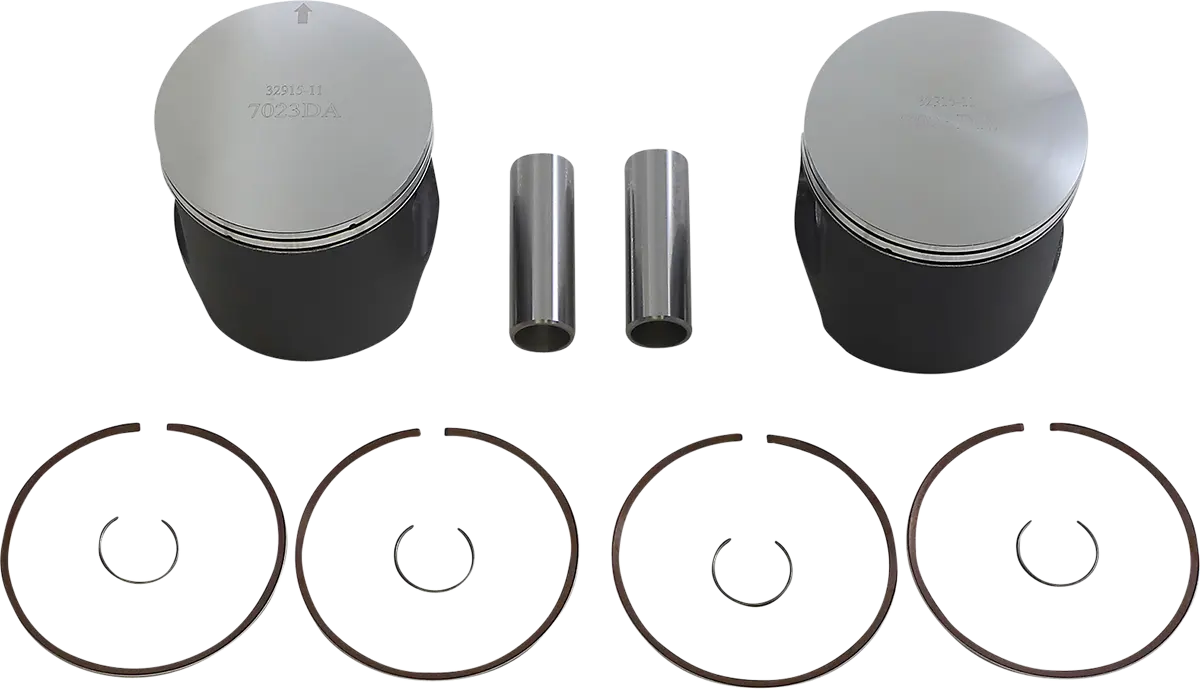

Wossner pistons are meticulously crafted from aerospace-grade forged aluminum alloy, ensuring exceptional strength and lightweight performance. This specific Wossner Standard Series Dual Ring Piston Kit is designed for 800cc 2-stroke engines, featuring an 82.00 mm bore and a 76.00 mm stroke. The optimized machining processes reduce overall weight while maintaining crucial strength in areas like the piston crown and skirt wall cross-section. A key feature is the permanent molybdenum disulphite (Moly) skirt coating, which significantly reduces friction and minimizes piston rock. This not only contributes to quieter operation and improved performance but also aids in the critical break-in period, extending the lifespan of your engine. Each kit provides a complete solution for motorcycle engine piston replacement, including the piston, high-quality nitride coated steel cast rings, piston pin, and retaining clips, making installation straightforward and reliable.
Features & Highlights
- Enhanced Durability & Performance: Features a high-quality, permanent Molybdenum Disulphite (Moly) skirt coating to drastically reduce friction, minimize piston rock, and ensure quieter, more efficient engine operation.
- Lightweight & Robust Design: Precision-machined from aerospace-grade forged aluminum alloy for optimal lightness without compromising strength in critical areas like the piston crown and skirt wall.
- Superior Material Quality: Forged from aerospace-grade aluminum alloy, offering exceptional resilience and a longer service life under demanding conditions.
- Complete Kit for Easy Installation: Each package provides a full Piston Kit, comprising the piston, durable nitride coated steel cast rings, piston pin, and retaining clips for a comprehensive and hassle-free replacement.
Technical Specifications
- Product Type: Piston Kit
- Model: Standard Series
- Engine Type: 2-Stroke
- Displacement: 800 cc
- Piston Material: Forged Aluminum Alloy
- Piston Diameter: 81.86 mm
- Piston Size: Standard Size A
- Bore Size: 82.00 mm
- Stroke Length: 76.00 mm
- Type: Dual Ring
- Skirt Coating: Molybdenum Disulphite
- Ring Material: Nitride Coated Steel, Cast
- Units: Kit
- Vendor Part Number: K7023DA-2
- Vendor part number
- K7023DA-2
- Model
- Standard Series
- Product name
- Piston Kit
- Bore size
- 82,00 mm
- Displacement
- 800 cc
- Piston material
- Aluminum Alloy, Forged
- Stroke length
- 76,00 mm
- Width
- 160 mm
- Height
- 115 mm
- Ring material
- Nitride Coated, Steel, Cast
- Piston size
- Standard Size A
- Length
- 270 mm
- Piston diameter
- 81,86 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 2-Stroke
- Type
- Dual Ring
- Units
- Kit
