Wossner Standard Series Piston Kit
Product info
- Item number
- 09106841
- Manufacturer number
- 4092DA
- Position
Elevate your motorcycle's engine performance with the Wossner 450cc Piston Kit, engineered for durability and power. This comprehensive kit provides everything you need to rebuild or upgrade your engine, ensuring optimal function and longevity. Designed for demanding 4-stroke applications, this Wossner piston kit delivers reliable, high-performance results.
Description
The Wossner Standard Series Piston Kit is meticulously crafted from aerospace-grade, forged aluminum alloy, offering exceptional strength and resilience under extreme conditions. Each forged piston kit features a permanent skirt coating, specifically designed to minimize friction and reduce piston rock, resulting in quieter operation and significantly improved engine performance. With an optimized machining process, Wossner maintains critical strength in areas like the crown and skirt wall cross-section while achieving an ideal lightweight profile. This high compression piston boasts a 13.0:1 compression ratio, providing a substantial boost in power and responsiveness for your 450cc 4-stroke engine. The Gas Ported, Two Ring Design further enhances combustion efficiency and ring seal, making this motorcycle piston an essential upgrade for any serious rider or mechanic.
Features & Highlights
- Enhanced Durability & Performance: Features a high-quality, permanent skirt coating that significantly reduces friction and piston rock, leading to quieter operation and improved overall engine efficiency.
- Superior Strength Material: Forged from aerospace-grade aluminum alloy, ensuring exceptional resilience and a long lifespan even under the most demanding riding conditions.
- Optimized Lightweight Design: Precision machining optimizes the piston for reduced weight without compromising strength in critical areas like the crown and skirt wall cross-section.
- High Compression Ratio: Engineered with a 13.0:1 compression ratio to deliver a noticeable increase in power, torque, and engine responsiveness.

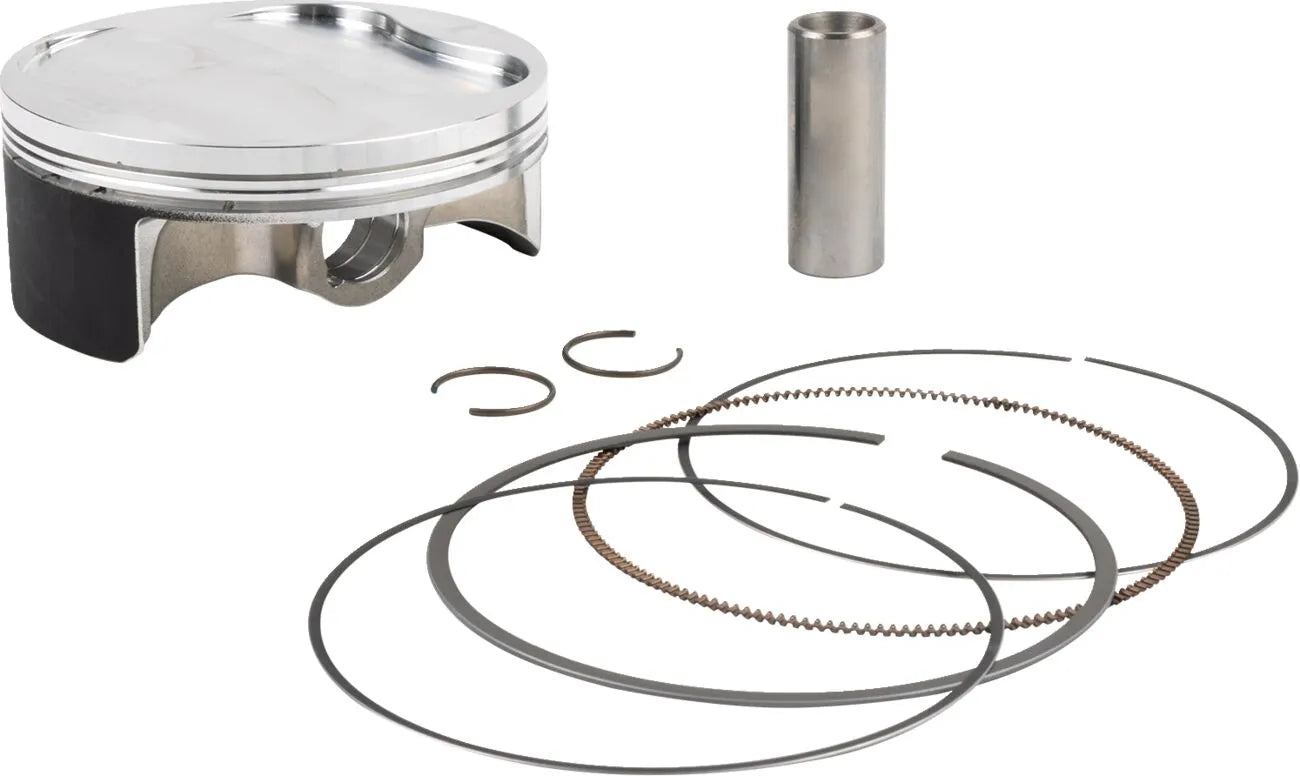

- Complete Rebuild Solution: Each kit includes the piston, rings, pin, and clips, providing all necessary components for a convenient and thorough engine refresh or upgrade.
Technical Specifications
- Type: Gas Ported, Two Ring Design
- Model: Standard Series
- Style: Standard Size A
- Units: Kit
- Bore Size: 97.00 mm
- Engine Type: 4-Stroke
- Piston Size: 96.96 mm
- Displacement: 450 cc
- Stroke Length: 60.80 mm
- Bore - Oversize: Standard
- Piston Material: Forged Aluminum Alloy
- Compression Ratio: 13.0:1
- Vendor Part Number: 4092DA
- Vendor part number
- 4092DA
- Model
- Standard Series
- Product name
- Piston Kit
- Style
- Standard Size A
- Bore size
- 97,00 mm
- Compression ratio
- 13.0:1
- Displacement
- 450 cc
- Piston material
- Aluminum Alloy, Forged
- Stroke length
- 60,80 mm
- Width
- 107 mm
- Height
- 69 mm
- Piston size
- 96.96 mm
- Length
- 111 mm
- Engine type
- 4-Stroke
- Type
- Gas Ported, Two Ring Design
- Units
- Kit
